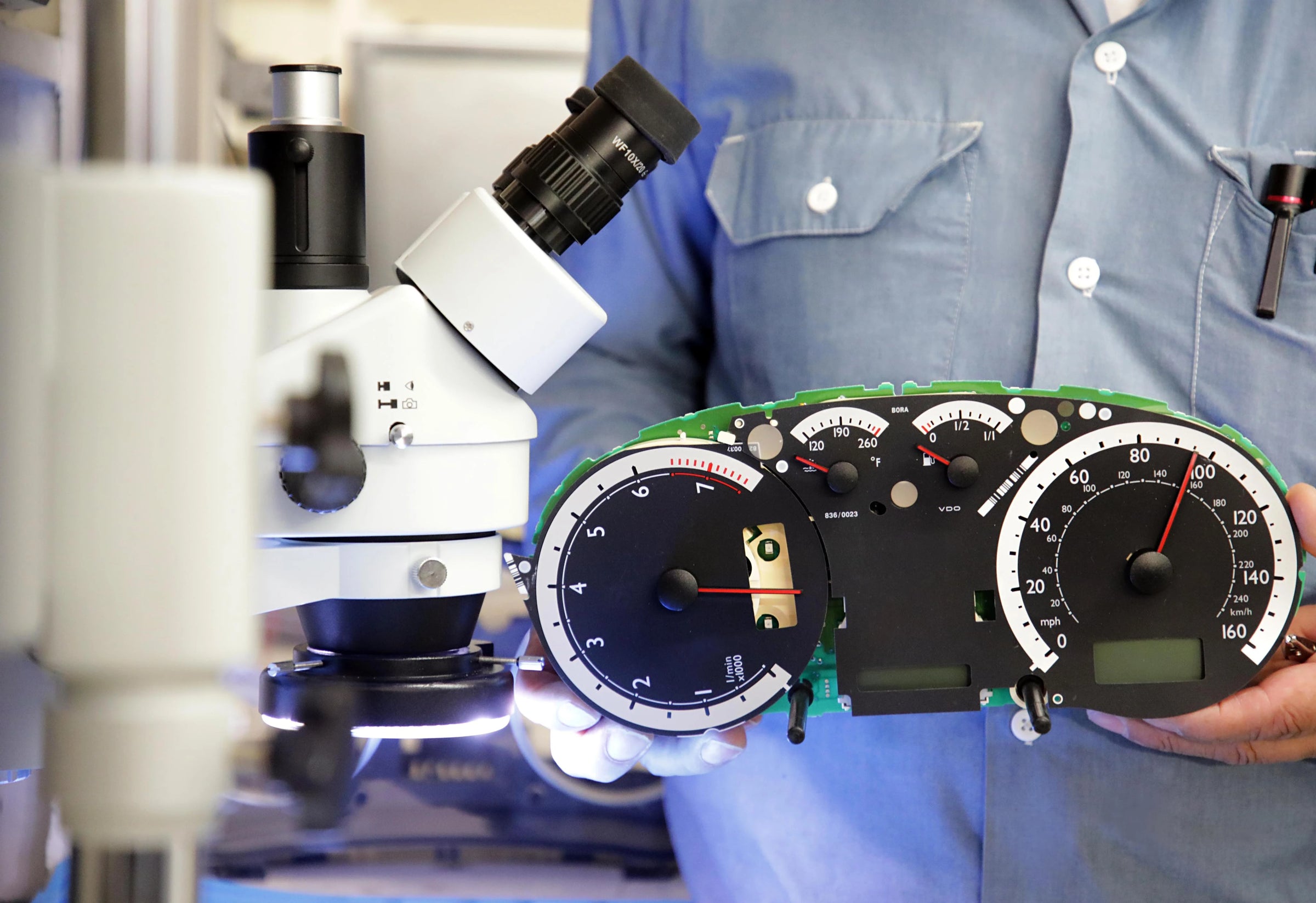

Instrument Cluster Repair
Module Repair Lab restores and rebuilds factory instrument clusters for trucks, SUVs, and performance cars. We fix dead or stuck gauges, dim/blank odometer displays, flicker, failed stepper motors, and lighting issues — with a 2–3 day turnaround, warranty-backed work, and nationwide mail-in or California drop-off.
We specialize in high-failure platforms including Chevrolet & GMC (GMT800/GMT900), Ford F-Series (through 2009), Ford Mustang (2005–2007), Toyota Tacoma (2005–2011), Toyota Prius (2004–2015), Land Rover (2005–2009), Infiniti (2005–2008), Dodge Magnum (2005–2010) and Chrysler 300 (2005–2007). Selecting a product below helps confirm compatibility and pricing for your cluster.
Popular Instrument Cluster Repairs
Select Your Vehicle Brand
Instrument Cluster Repair & Rebuild | Chevy, GMC, Ford, Toyota, Land Rover, Infiniti, Dodge, Chrysler
At Module Repair Lab, we provide precise, warranty-backed instrument cluster repair for the models that fail most often. Whether you’re chasing a 2003 Chevrolet Silverado dash cluster speedometer issue, an 04 Chevy Avalanche instrument cluster with dim backlighting, a 2004 GMC Sierra instrument cluster not working, a 05 Chevy TrailBlazer instrument cluster with erratic gauges, or a Mustang instrument cluster (2005–2007) needing needle recalibration — our bench procedures restore OEM accuracy without dealership prices.
Common Symptoms by Platform
Chevy & GMC (’03–’06)
- Speedometer/tach needles stuck or off-zero
- Dim/blank odometer display
- Intermittent power or random gauge sweeps
- Examples: 03 Suburban instrument cluster, 03 GMC Yukon instrument cluster, 2007 Chevrolet Tahoe instrument cluster
Ford F-Series (≤ ’09) & Mustang (’05–’07)
- Intermittent illumination / dark PRNDL
- Inaccurate speedometer or tach after battery work
- Mustang: needle jitter, dim backlight
Toyota Tacoma (’05–’11) & Prius (’04–’15)
- Tacoma: fuel/temp gauge inaccuracy, dim odometer
- Prius: intermittent cluster display, warning logic faults
Land Rover (’05–’09), Infiniti (’05–’08)
- Land Rover: dead pixels, warning lights stuck
- Infiniti: backlight fade, peeling faces (e.g., 2005 Infiniti G35 instrument cluster)
Why Clusters Fail (Root Causes)
Heat, vibration, and aging components lead to failing stepper motors, brittle light filters, and cracked solder joints. Low-voltage events during jump starts or battery swaps can stress the cluster’s power circuits. GM trucks/SUVs (’03–’06) are known for motor wear and dim odometers; Ford F-Series up to 2009 show illumination dropouts; Toyota Tacoma (’05–’11) and Prius (’04–’15) exhibit intermittent displays; Land Rover (’05–’09) has pixel loss; Infiniti (’05–’08) often suffers backlight fade and cosmetic face failure.
Quick DIY Checks Before You Ship
- Verify battery health and grounds; weak voltage mimics cluster failure.
- Inspect related fuses and connectors under the dash; reseat as needed.
- Note when symptoms occur (cold start, hot soak, bumps) to speed diagnostics.
Our Repair Process (What We Do)
- Mail-in intake — check-in, symptom logging, pre-test (gauge sweep, display, comms).
- Rebuild & calibrate — replace stepper motors/LEDs, rework solder joints, clean/secure connectors, calibrate gauges to spec.
- QA bench test — extended burn-in and multi-cycle tests. Odometer data is preserved.
Typical Pricing & Turnaround
- Most GM/Ford/Toyota clusters: cost-effective repair vs dealer replacement.
- Severe corrosion/fire or missing components may require replacement (we’ll advise after evaluation).
- Turnaround: 2–3 business days after arrival for standard repairs.
How Mail-In Service Works
Place your order, then remove the cluster (basic hand tools; disconnect battery first).
Use padding and a sturdy box; include your order # and a symptom note.
We repair, test, and ship back ready to reinstall — plug in and go.
Repair vs. Replace — What’s Best?
- Repair when gauges are inaccurate, backlights are dim, or power is intermittent.
- Replace for fire/water damage, heavy corrosion, or missing/broken boards.
We routinely service: 2003 Chevrolet Silverado dash cluster, 04 Chevy Avalanche instrument cluster, 2004 GMC Sierra instrument cluster not working, 05 Chevy TrailBlazer instrument cluster, 03 Suburban instrument cluster, 2003 Hummer H2 instrument cluster, 03 GMC Yukon instrument cluster, 2006 Dodge Ram instrument cluster, 2007 Chevrolet Tahoe instrument cluster, and 2005 Infiniti G35 instrument cluster. If you’ve been searching for the best instrument cluster repair or instrument cluster repair Chevy — you’re in the right place.
Frequently Asked Questions (FAQ)
Will you change my mileage?
No. Odometer data stays intact. We address hardware faults (motors, lighting, power/logic).
How long does the rebuild take?
Typical bench time is 2–3 business days from arrival. Complex corrosion can add time.
Do you calibrate gauges after repair?
Yes. We perform gauge sweep tests and calibration checks so readings are accurate at key points (idle/cruise/highway).
When is replacement better than repair?
Severe water/fire damage, missing ICs, or cracked mainboards usually require replacement. We’ll confirm after evaluation.
Can low battery or alternator issues cause false symptoms?
Yes. Low voltage and voltage ripple can trigger flicker and erratic gauges. Test battery/charging system first.
Do you work on ag equipment clusters?
Yes — we support John Deere and New Holland clusters (pixel loss, backlight, power faults). Contact us with model/PN.
What warranty do you provide?
Repairs are warranty-backed. Coverage varies by platform; we’ll note terms on your order page.
Ready to Restore Your Gauges?
From a 2003 Hummer H2 instrument cluster to a 2007 Chevrolet Tahoe instrument cluster or a 2006 Dodge Ram instrument cluster, we’ve got you covered. Get dealership-grade results without dealership pricing.
<
